🧰 Introduction to the tidyverse

---

}
</style>

### Today's menu

1. What is the tidyverse?

2. Data science workflow

3. Tibble

4. Factor

5. Pipe

]

]

---
background-image: url(tidyverse.jpeg)
background-size: 100px
background-position: 98% 6%

 # What is the tidyverse?

- Collection of essential R packages for data science.

- All packages share a common design philosophy, grammar, and data structures.

![](tidyversecollection.png)

---

## Setup

```r
install.packages("tidyverse") # install tidyverse packages

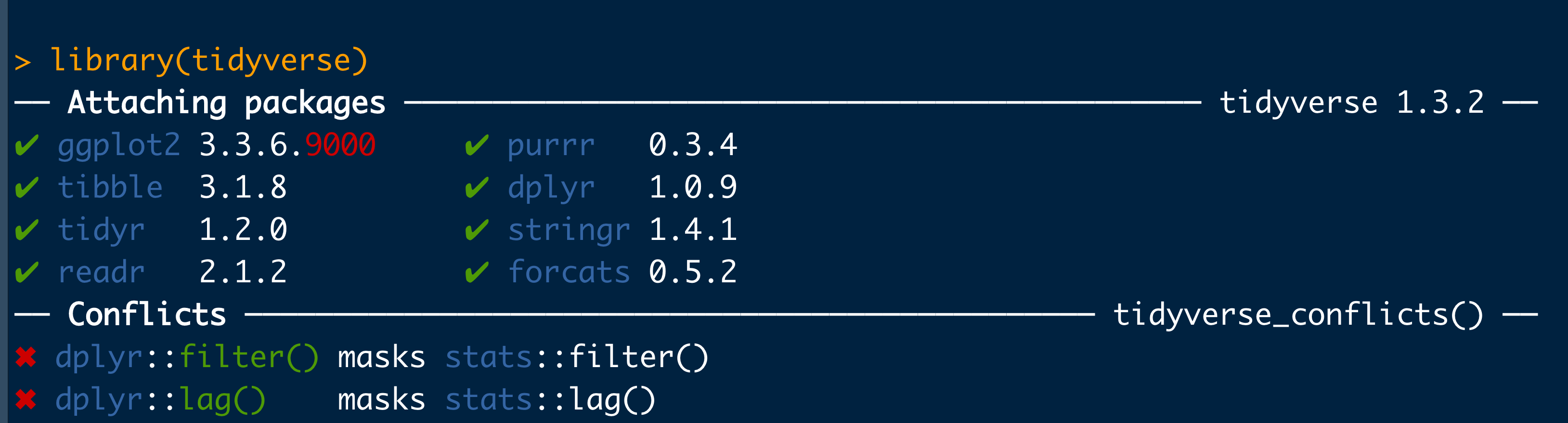

library(tidyverse) # load tidyverse packages

```
![](tidyverseload2.png)

---

background-image: url(workflowds.png)
background-position: center
background-size: contain

# Workflow

.footer-note[.tiny[.green[Image Credit: ][Wickham](https://clasticdetritus.com/2013/01/10/creating-data-plots-with-r/)]]

---
background-image: url(readr.png)
background-size: 100px
background-position: 98% 6%

# Workflow: import

![700px](workflowds.png)

![](datacollection.png)

---
background-image: url(tidyr.jpeg)
background-size: 100px
background-position: 98% 6%

![](workflowds.png)

---

background-image: url(tidyr.jpeg)
background-size: 100px
background-position: 98% 6%

# Workflow: tidy

![700px](longWideformat.png)

---
background-image: url(dplyr.png)
background-size: 100px
background-position: 98% 6%

![](workflowds.png)

---
background-image: url(dplyr.png)
background-size: 100px
background-position: 98% 6%

# Workflow: transform

![](dplyrillustration.png)

---
background-image: url(ggplot2.png)
background-size: 100px
background-position: 98% 6%

![](workflowds.png)

---
background-image: url(ggplot2.png)
background-size: 100px
background-position: 98% 6%

# Workflow: visualise

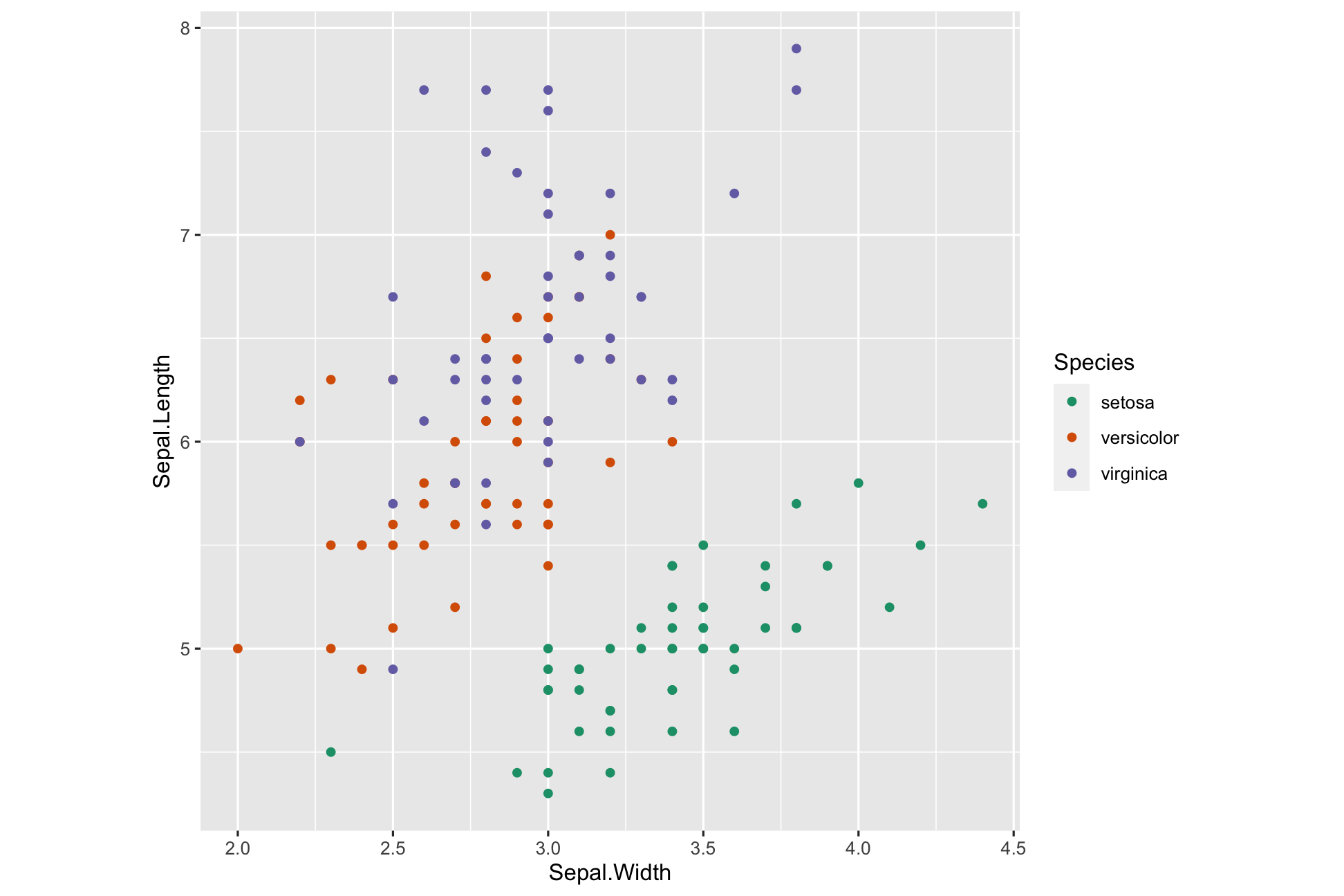

### Illustration

```r
library(ggplot2)
ggplot(iris,
aes(Sepal.Width, Sepal.Length,
color=Species)) +
geom_point() +
theme(aspect.ratio  = 1) +
scale_color_manual(values =
c("#1b9e77", "#d95f02", "#7570b3"))
```
]

.pull-right[
<img src="l72021_files/figure-html/unnamed-chunk-1-1.png" width="100%" />
]
---
background-image: url(purrr.png)
background-size: 100px
background-position: 98% 6%

# Workflow: model

## Illustration: Apply a linear model to each group

```r
nested_iris <- group_by(iris, Species) %>% nest()
fit_model <- function(df) lm(Sepal.Length ~ Sepal.Width, data = df)
nested_iris <- nested_iris %>%
 mutate(model = map(data, fit_model))

nested_iris$model[[1]] # To print other two models nested_iris$model[[2]] nested_iris$model[[3]]
```

```

Call:
lm(formula = Sepal.Length ~ Sepal.Width, data = df)

Coefficients:
(Intercept)  Sepal.Width
     2.6390       0.6905
```

---

# Workflow: communicate

![700px](workflowds.png)

---

# Workflow: communicate

![](communicate.png)

---

background-image: url(tidyvflowpkg.png)
background-size: contain
background-position: center

# Workflow: R packages

---

# 1. Tibble

# 2. Factor

# 3. Pipe
---

# Tibble

![](tibbleintro.jpeg)
---
background-image: url(tibble.png)
background-size: 100px
background-position: 98% 6%

# Tibble

- Tibbles are data frames.

- A modern re-imagining of data frames.

---

# Create a tibble

```r
library(tidyverse) # library(tibble)
first.tbl <- tibble(height = c(150, 200, 160), weight = c(45, 60, 51))
first.tbl
```

```
# A tibble: 3 × 2
  height weight
   <dbl>  <dbl>
1    150     45
2    200     60
3    160     51
```

```r
class(first.tbl)
```

```
[1] "tbl_df"     "tbl"        "data.frame"
```

---

# Convert an existing dataframe to a tibble

```r
as_tibble(iris)
```

```
# A tibble: 150 × 5
   Sepal.Length Sepal.Width Petal.Length Petal.Width Species
          <dbl>       <dbl>        <dbl>       <dbl> <fct>
 1          5.1         3.5          1.4         0.2 setosa
 2          4.9         3            1.4         0.2 setosa
 3          4.7         3.2          1.3         0.2 setosa
 4          4.6         3.1          1.5         0.2 setosa
 5          5           3.6          1.4         0.2 setosa
 6          5.4         3.9          1.7         0.4 setosa
 7          4.6         3.4          1.4         0.3 setosa
 8          5           3.4          1.5         0.2 setosa
 9          4.4         2.9          1.4         0.2 setosa
10          4.9         3.1          1.5         0.1 setosa
# … with 140 more rows
```

---

# Convert a tibble to a dataframe

```r
first.tbl <- tibble(height = c(150, 200, 160), weight = c(45, 60, 51))
class(first.tbl)
```

```
[1] "tbl_df"     "tbl"        "data.frame"
```

```r
first.tbl.df <- as.data.frame(first.tbl)
class(first.tbl.df)
```

```
[1] "data.frame"
```

---
class: inverse, center, middle

# tibble vs data.frame

---

**tibble**

```r
first.tbl <- tibble(height = c(150, 200, 160), weight = c(45, 60, 51))
first.tbl
```

```
# A tibble: 3 × 2
  height weight
   <dbl>  <dbl>
1    150     45
2    200     60
3    160     51
```

**data.frame**

```r
dataframe <- data.frame(height = c(150, 200, 160), weight = c(45, 60, 51))
dataframe
```

```
  height weight
1    150     45
2    200     60
3    160     51
```

---

- You can create new variables that are functions of existing variables.

**tibble**

```r
first.tbl <- tibble(height = c(150, 200, 160), weight = c(45, 60, 51),
                    bmi = (weight)/height^2)
first.tbl
```

```
# A tibble: 3 × 3
  height weight     bmi
   <dbl>  <dbl>   <dbl>
1    150     45 0.002
2    200     60 0.0015
3    160     51 0.00199
```

**data.frame**

```r
df <- data.frame(height = c(150, 200, 160), weight = c(45, 60, 51),
                    bmi = (weight)/height^2) # Not working
```

You will get an error message

<span style="color:red">`Error in data.frame(height = c(150, 200, 160), weight = c(45, 60, 51),  :
  object 'height' not found.`</span>

---

With `data.frame` this is how we should create a new variable from the existing columns.

```r
df <- data.frame(height = c(150, 200, 160), weight = c(45, 60, 51))
df$bmi <- (df$weight)/(df$height^2)
df
```

```
  height weight         bmi
1    150     45 0.002000000
2    200     60 0.001500000
3    160     51 0.001992188
```

---

- In contrast to data frames, the variable names in tibbles can contain spaces.

**Example 1**

```r
tbl <- tibble(`patient id` = c(1, 2, 3))
tbl
```

```
# A tibble: 3 × 1
  `patient id`
         <dbl>
1            1
2            2
3            3
```

```r
df <- data.frame(`patient id` = c(1, 2, 3))
df
```

```
  patient.id
1          1
2          2
3          3
```

---

- In contrast to data frames, the variable names in tibbles can start with a number.

```r
tbl <- tibble(`1var` = c(1, 2, 3))
tbl
```

```
# A tibble: 3 × 1
  `1var`
   <dbl>
1      1
2      2
3      3
```

]

```r
df <- data.frame(`1var` = c(1, 2, 3))
df
```

```
  X1var
1     1
2     2
3     3
```

]

In general, tibbles do not change the names of input variables and do not use row names.

---

**tibble**

A tibble can have columns that are lists.

```r
tbl <- tibble (x = 1:3, y = list(1:3, 1:4, 1:10))
tbl
```

```
# A tibble: 3 × 2
      x y
  <int> <list>
1     1 <int [3]>
2     2 <int [4]>
3     3 <int [10]>
```
]

**data.frame**

This feature is not available in `data.frame`.

If we try to do this with a traditional data frame we get an error.

```r
df <- data.frame(x = 1:3, y = list(1:3, 1:4, 1:10)) ## Not working, error
```

`Error in (function (..., row.names = NULL, check.rows = FALSE, check.names = TRUE,  : arguments imply differing number of rows: 3, 4, 10`

]

---
class: inverse, center, middle

# Subsetting: tibble vs data.frame

---
class: inverse, center, middle

# Subsetting single columns

---

**data.frame**

```r
df <- data.frame(x = 1:3,
                 yz = c(10, 20, 30)); df
```

```
  x yz
1 1 10
2 2 20
3 3 30
```

```r
df[, "x"]
```

```
[1] 1 2 3
```

```r
df[, "x", drop=FALSE]
```

```
  x
1 1
2 2
3 3
```

]

**tibble**

```r
tbl <- tibble(x = 1:3,
              yz = c(10, 20, 30)); tbl
```

```
# A tibble: 3 × 2
      x    yz
  <int> <dbl>
1     1    10
2     2    20
3     3    30
```

```r
tbl[, "x"]
```

```
# A tibble: 3 × 1
      x
  <int>
1     1
2     2
3     3
```

]

---

###Subsetting single columns (cont) - tibble:

```r
tbl <- tibble(x = 1:3,
              yz = c(10, 20, 30))
tbl
```

```
# A tibble: 3 × 2
      x    yz
  <int> <dbl>
1     1    10
2     2    20
3     3    30
```

```r
tbl[, "x"]
```

```
# A tibble: 3 × 1
      x
  <int>
1     1
2     2
3     3
```

]

```r
# Method 1
tbl[, "x", drop = TRUE]
```

```
[1] 1 2 3
```

```r
# Method 2
as.data.frame(tbl)[, "x"]
```

```
[1] 1 2 3
```

]

---
### Subsetting single rows with the drop argument

**data.frame**

```r
df[1, , drop = TRUE]
```

```
$x
[1] 1

$yz
[1] 10
```

]

**tibble**

```r
tbl[1, , drop = TRUE]
```

```
# A tibble: 1 × 2
      x    yz
  <int> <dbl>
1     1    10
```

```r
as.list(tbl[1, ])
```

```
$x
[1] 1

$yz
[1] 10
```

]

---

### Accessing non-existent columns

**data.frame**

```r
df$y
```

```
[1] 10 20 30
```

```r
df[["y", exact = FALSE]]
```

```
[1] 10 20 30
```

```r
df[["y", exact = TRUE]]
```

```
NULL
```

]

**tibble**

```r
tbl$y
```

```
NULL
```

```r
tbl[["y", exact = FALSE]]
```

```
NULL
```

```r
tbl[["y", exact = TRUE]]
```

```
NULL
```

]

---

### Functions work with both tibbles and dataframes

```r
names(), colnames(), rownames(), ncol(), nrow(), length() # length of the underlying list
```

---
.pull-left[

**tibble**

```r
tb <- tibble(a = 1:3)
names(tb)
```

```
[1] "a"
```

```r
colnames(tb)
```

```
[1] "a"
```

```r
rownames(tb)
```

```
[1] "1" "2" "3"
```

```r
nrow(tb); ncol(tb); length(tb)
```

```
[1] 3
```

```
[1] 1
```

```
[1] 1
```
]

**data.frame**

```r
df <- data.frame(a = 1:3)
names(df)
```

```
[1] "a"
```

```r
colnames(df)
```

```
[1] "a"
```

```r
rownames(df)
```

```
[1] "1" "2" "3"
```

```r
nrow(df); ncol(df); length(df)
```

```
[1] 3
```

```
[1] 1
```

```
[1] 1
```
]
---

However, when using tibble, we can use some additional commands

```r
is.tibble(tb)
```

```
[1] TRUE
```

```r
is_tibble(tb) # is.tibble()` is deprecated as of tibble 2.0.0, Please use `is_tibble()` instead of is.tibble
```

```
[1] TRUE
```

```r
glimpse(tb)
```

```
Rows: 3
Columns: 1
$ a <int> 1, 2, 3
```

---

# Factors

---
**factor**

- A vector that is used to store categorical variables.

- It can only contain predefined values. Hence, factors are useful when you know the possible values a variable may take.

**Creating a factor vector**

```r
grades <- factor(c("A", "A", "A", "C", "B"))
grades
```

```
[1] A A A C B
Levels: A B C
```
--
Now let's check the class type

```r
class(grades) # It's a factor
```

```
[1] "factor"
```
--
To obtain all levels

```r
levels(grades)
```

```
[1] "A" "B" "C"
```

---
## Creating a factor vector (cont)

- With factors all possible values of the variables can be defined under levels.

```r
grade_factor_vctr <-
  factor(c("A", "D", "A", "C", "B"),
         levels = c("A", "B", "C", "D", "E"))
grade_factor_vctr
```

```
[1] A D A C B
Levels: A B C D E
```

```r
levels(grade_factor_vctr)
```

```
[1] "A" "B" "C" "D" "E"
```

```r
class(levels(grade_factor_vctr))
```

```
[1] "character"
```

---

### Character vector vs Factor

- Observe the differences in outputs. Factor prints all possible levels of the variable.

**Character vector**

```r
grade_character_vctr <- c("A", "D", "A", "C", "B")
grade_character_vctr
```

```
[1] "A" "D" "A" "C" "B"
```

**Factor vector**

```r
grade_factor_vctr <- factor(c("A", "D", "A", "C", "B"),
         levels = c("A", "B", "C", "D", "E"))
grade_factor_vctr
```

```
[1] A D A C B
Levels: A B C D E
```

---
### Character vector vs Factor (cont.)

- Factors behave like character vectors but they are
actually integers.

**Character vector**

```r
typeof(grade_character_vctr)
```

```
[1] "character"
```

**Factor vector**

```r
typeof(grade_factor_vctr)
```

```
[1] "integer"
```

---

- Let's create a contingency table with `table` function.

**Character vector output with table function**

```r
grade_character_vctr <- c("A", "D", "A", "C", "B")
table(grade_character_vctr)
```

```
grade_character_vctr
A B C D
2 1 1 1
```

]

**Factor vector (with levels) output with table function**

```r
grade_factor_vctr <-
  factor(c("A", "D", "A", "C", "B"),
         levels = c("A", "B", "C", "D", "E"))
table(grade_factor_vctr)
```

```
grade_factor_vctr
A B C D E
2 1 1 1 0
```

]

- Output corresponds to factor prints counts for all possible levels of the variable. Hence, with factors it is obvious when some levels contain no observations.

---

- With factors you can't use values that are not listed in the levels, but with character vectors there is no such restrictions.

**Character vector**

```r
grade_character_vctr[2] <- "A+"
grade_character_vctr
```

```
[1] "A"  "A+" "A"  "C"  "B"
```

**Factor vector**

```r
grade_factor_vctr[2] <- "A+"
grade_factor_vctr
```

```
[1] A    <NA> A    C    B
Levels: A B C D E
```
---
### Modify factor levels

This our factor

```r
grade_factor_vctr
```

```
[1] A    <NA> A    C    B
Levels: A B C D E
```

### Change labels

```r
levels(grade_factor_vctr) <-
  c("Excellent", "Good", "Average", "Poor", "Fail")
grade_factor_vctr
```

```
[1] Excellent <NA>      Excellent Average   Good
Levels: Excellent Good Average Poor Fail
```
]

```r
levels(grade_factor_vctr) <- rev(levels(grade_factor_vctr))
grade_factor_vctr
```

```
[1] Fail    <NA>    Fail    Average Poor
Levels: Fail Poor Average Good Excellent
```

]

---

### Order of factor levels

```r
fv1 <- factor(c("D","E","E","A", "B", "C"))
fv1
```

```
[1] D E E A B C
Levels: A B C D E
```

```r
fv2 <- factor(c("1T","2T","3A","4A", "5A", "6B", "3A"))
fv2
```

```
[1] 1T 2T 3A 4A 5A 6B 3A
Levels: 1T 2T 3A 4A 5A 6B
```

]

```r

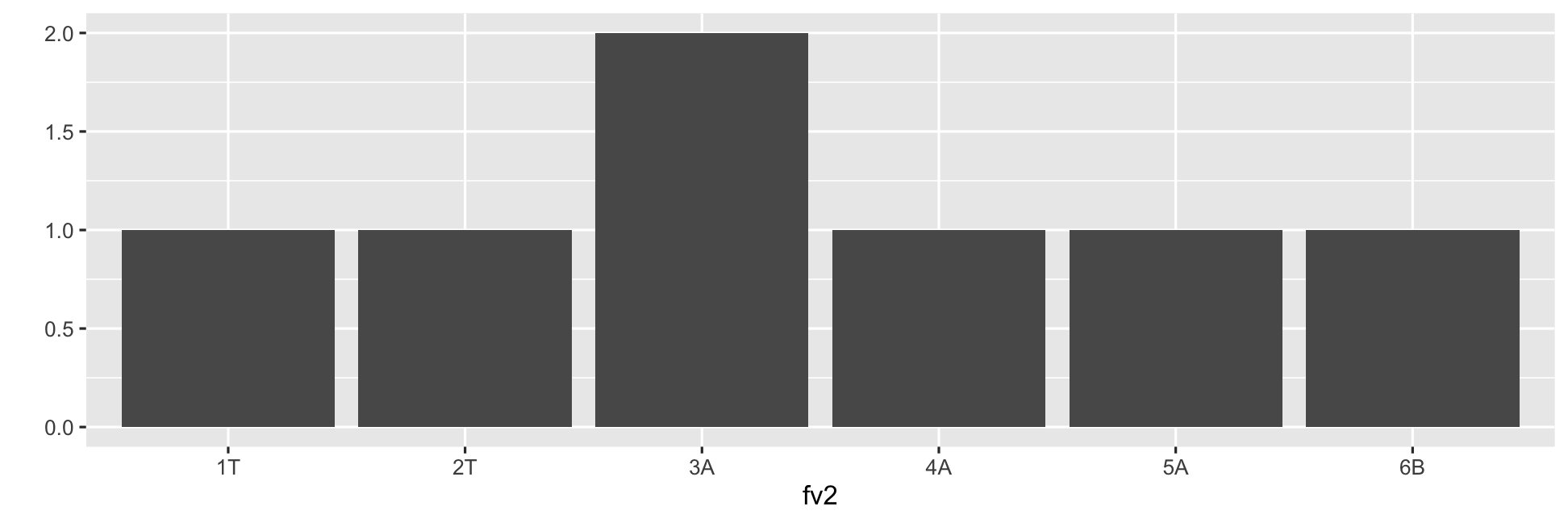

qplot(fv2, geom = "bar")
```

]

---
# Order of factor levels (cont.)

You can change the order of levels

```r
fv2 <- factor(c("1T","2T","3A","4A", "5A", "6B", "3A"),
              levels = c("3A", "4A", "5A", "6B", "1T", "2T"))
fv2
```

```
[1] 1T 2T 3A 4A 5A 6B 3A
Levels: 3A 4A 5A 6B 1T 2T
```

```r

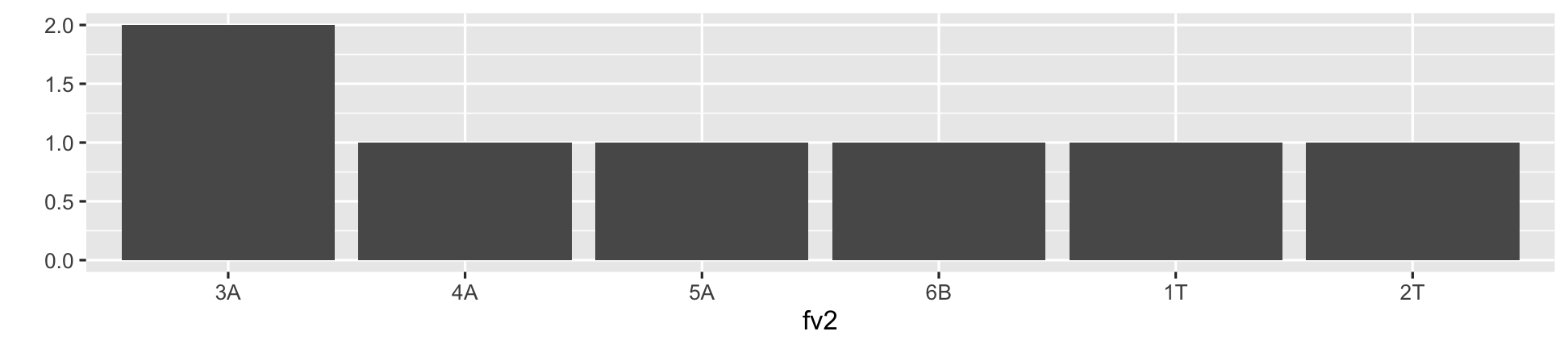

qplot(fv2, geom = "bar")
```

---

Note that tibbles do not change the types of input variables (e.g., strings are not converted to factors by default).

```r
tbl <- tibble(x1 = c("setosa", "versicolor", "virginica", "setosa"))
tbl
```

```
# A tibble: 4 × 1
  x1
  <chr>
1 setosa
2 versicolor
3 virginica
4 setosa
```

```r
df <- data.frame(x1 = c("setosa", "versicolor", "virginica", "setosa"))
df
```

```
          x1
1     setosa
2 versicolor
3  virginica
4     setosa
```

```r
class(df$x1)
```

```
[1] "character"
```

---

# Pipe operator: %>%
![](magrittrpic.jpeg)

---
background-image: url(magrittrlogo.png)
background-size: 100px
background-position: 98% 6%

## Required package: `magrittr`

```r
install.packages("magrittr")
library(magrittr)
```

---

## What does it do?

It takes whatever is on the left-hand-side of the pipe and makes it the first argument of whatever function is on the right-hand-side of the pipe.

For instance,

```r
mean(1:10)
```

```
[1] 5.5
```

can be written as

```r
1:10 %>% mean()
```

```
[1] 5.5
```

---

# Pipe operator: %>%

![](pipeillustration.png)

## Illustrations

1. `x %>% f(y)` turns into `f(x, y)`

1. `x %>% f(y) %>% g(z)` turns into `g(f(x, y), z)`

---
### Why %>%

- This helps to make your code more readable.

```r
colSums(matrix(c(1, 2, 3, 4, 8, 9, 10, 12), nrow=2))
```

```
[1]  3  7 17 22
```

]

**Method 2: Using pipe (easy to read)**

```r
c(1, 2, 3, 4, 8, 9, 10, 12) %>%
  matrix( , nrow = 2) %>%
  colSums()
```

```
[1]  3  7 17 22
```

```r
c(1, 2, 3, 4, 8, 9, 10, 12) %>%
  matrix(nrow = 2) %>% # remove comma
  colSums()
```

```
[1]  3  7 17 22
```

]

---

```r
library(tidyverse) # to use as_tibble
library(magrittr) # to use %>%
df <- data.frame(x1 = 1:3, x2 = 4:6)
df
```

```
  x1 x2
1  1  4
2  2  5
3  3  6
```

## Rules

---

**Rule 1**

```r
head(df)
df %>% head()

```

```
  x1 x2
1  1  4
2  2  5
3  3  6
```

**Rule 2**

```r
head(df, n = 2)
df %>% head(n = 2)

```

```
  x1 x2
1  1  4
2  2  5
```

]

**Rule 3**

```r
head(df, n = 2)
2 %>% head(df, n = .)

```

```
  x1 x2
1  1  4
2  2  5
```

**Rule 4**
```r
head(as_tibble(df), n = 2)
df %>% as_tibble() %>%
head(n = 2)

```

```
# A tibble: 2 × 2
     x1    x2
  <int> <int>
1     1     4
2     2     5
```

]

---

**Rule 5: subsetting**

```r
df$x1
df %>% .$x1
```

```
[1] 1 2 3
```

```r
df[["x1"]]
df %>% .[["x1"]]
```

```
[1] 1 2 3
```

```r
df[[1]]
df %>% .[[1]]
```

```
[1] 1 2 3
```

---

## Offline reading materials

Type the following codes to see more examples:

```r
vignette("magrittr")
vignette("tibble")
```

---

Slides available at: hellor.netlify.app
