class: center, middle, inverse, title-slide .title[ # STA 326 2.0 Programming and Data Analysis with R ] .subtitle[ ## π¦Working with built-in functions in R ] .author[ ### ] .author[ ### Dr Thiyanga Talagala ] --- <style type="text/css"> .remark-slide-content { font-size: 30px; } </style> # Today's menu .pull-left[ - How to call a built-in function - Arguments matching - Basic functions - Test and type conversion functions - Probability distribution functions - Reproducibility of scientific results - Data visualization: `qplot` ] .pull-right[ <center><img src="bread.jpeg" height="500px"/></center> ] --- ## Functions in R ππ» Perform a specific task according to a set of instructions. -- ππ» Some functions we have discussed so far, > `c`, `matrix`, `array`, `list`, `data.frame`, `str`, `dim`, `length`, `nrow`, `which.max`, `diag`, `summary` -- ππ» In R, functions are **objects** of **class** *function*. ```r class(length) ``` ``` [1] "function" ``` --- ## Functions in R (cont.) ππ» There are basically two types of functions: > π» Built-in functions Already created or defined in the programming framework to make our work easier. > π¨ User-defined functions Sometimes we need to create our own functions for a specific purpose. --- ### How to call a built-in function in R ```r function_name(arg1 = 1, arg2 = 3) ``` **Argument matching** The following calls to `mean` are all equivalent ```r mydata <- c(rnorm(20), 100000) mean(mydata) # matched by position mean(x = mydata) # matched by name mean(mydata, na.rm = FALSE) mean(x = mydata, na.rm = FALSE) mean(na.rm = FALSE, x = mydata) mean(na.rm = FALSE, mydata) ``` ``` [1] 4761.73 ``` β οΈ Even though it works, do not change the order of the arguments too much. --- ## Argument matching (cont.) .pull-left[ - some arguments have default values ```r mean(mydata, trim=0) ``` ``` [1] 4761.73 ``` ```r mean(mydata) # Default value for trim is 0 ``` ``` [1] 4761.73 ``` ] .pull-right[ ```r mean(mydata, trim=0.1) ``` ``` [1] -0.1063261 ``` ```r mean(mydata, tr=0.1) # Partial Matching ``` ``` [1] -0.1063261 ``` ] --- background-image: url('helpmean.png') background-position: center background-size: contain ## ?mean --- class: inverse, center, middle # Your turn --- 1. Calculate the mean of 1, 2, 3, 8, 10, 20, 56, NA. --- # Basic maths functions | Operator | Description | |---|---| |<img width=400/>|<img width=500/>| | abs(x) | absolute value of x | | log(x, base = y) | logarithm of x with base y; if base is not specified, returns the natural logarithm | |exp(x)| exponential of x| |sqrt(x)|square root of x| |factorial(x)| factorial of x| --- # Basic statistic functions | Operator | Description | |---|---| |<img width=400/>|<img width=400/>| | mean(x) | mean of x | | median(x) | median of x | |mode(x)| mode of x| |var(x)|variance of x| |sd(x)|standard deviation of x| |scale(x)| z-score of x| |quantile(x)| quantiles of x| |summary(x)|summary of x: mean, minimum, maximum, etc.| --- .pull-left[ ## Test and Type conversion functions | Test | Convert | |---|---| |<img width=400/>|<img width=400/>| | is.numeric() | as.numeric() | | is.character() | as.character() | |is.vector()| as.vector()| |is.matrix()|as.matrix()| |is.data.frame()| as.data.frame()| |is.factor()| as.factor()| |is.logical()|as.logical()| |is.na()|| ] -- .pull-right[ ```r a <- c(1, 2, 3); a ``` ``` [1] 1 2 3 ``` ```r is.numeric(a) ``` ``` [1] TRUE ``` ```r is.vector(a) ``` ``` [1] TRUE ``` ```r b <- as.character(a); b ``` ``` [1] "1" "2" "3" ``` ```r is.vector(b) ``` ``` [1] TRUE ``` ```r is.character(b) ``` ``` [1] TRUE ``` ] --- class: inverse, center, middle # Your turn --- Remove missing values in the following vector ```r a ``` ``` [1] 0.61940020 -0.93808729 0.95518590 -0.22663938 0.29591186 NA [7] 0.36788089 0.71791098 0.71202022 0.22765782 NA NA [13] -0.74024324 0.02081516 -0.14979979 -0.22351308 0.98729725 NA [19] NA NA NA NA NA NA [25] NA NA NA -1.50016003 0.18682734 0.20808590 [31] 0.70102264 -0.10633074 -1.18460046 0.06475501 0.11568817 -0.04333140 [37] -0.22020064 0.02764713 0.10165760 -0.18234246 1.32914659 -1.29704248 [43] 1.05317749 -0.70109051 0.09798707 0.10457263 -0.21449845 ``` --- ### Probability distribution functions - Each probability distribution in R is associated with four functions. - Naming convention for the four functions: For each function there is a root name. For example, the **root name** for the normal distribution is `norm`. This root is prefixed by one of the letters `d`, `p`, `q`, `r`. - **d** prefix for the **distribution** function - **p** prefix for the **cumulative probability** - **q** prefix for the **quantile** - **r** prefix for the **random** number generator - Example: `dnorm`, `pnorm`, `qnorm`, `rnorm` --- background-image: url('dis.jpeg') background-position: center background-size: contain --- ### Illustration with Standard normal distribution The general formula for the probability density function of the normal distribution with mean `\(\mu\)` and variance `\(\sigma\)` is given by $$ f_X(x) = \frac{1}{\sigma\sqrt{(2\pi)}} e^{-(x-\mu)^2/2\sigma^2} $$ If we let the mean `\(\mu=0\)` and the standard deviation `\(\sigma=1\)`, we get the probability density function for the standard normal distribution. $$ f_X(x) = \frac{1}{\sqrt{(2\pi)}} e^{-(x)^2/2} $$ --- ### Standard Normal Distribution .pull-left[ $$ f_X(x) = \frac{1}{\sqrt{(2\pi)}} e^{-(x)^2/2} $$ ```r dnorm(0) ``` ``` [1] 0.3989423 ``` ] .pull-right[ <div class="figure"> <img src="l42022_files/figure-html/unnamed-chunk-11-1.png" alt="Standard normal probability density function: dnorm(0)" width="100%" /> <p class="caption">Standard normal probability density function: dnorm(0)</p> </div> ] --- ### Standard Normal Distribution .pull-left[ $$ f_X(x) = \frac{1}{\sqrt{(2\pi)}} e^{-(x)^2/2} $$ ```r pnorm(0) ``` ``` [1] 0.5 ``` ] .pull-right[ <div class="figure"> <img src="l42022_files/figure-html/unnamed-chunk-13-1.png" alt="Standard normal probability density function: pnorm(0)" width="100%" /> <p class="caption">Standard normal probability density function: pnorm(0)</p> </div> ] --- ## Standard Normal Distribution .pull-left[ $$ f_X(x) = \frac{1}{\sqrt{(2\pi)}} e^{-(x)^2/2} $$ ```r qnorm(0.5) ``` ``` [1] 0 ``` ] .pull-right[ <div class="figure"> <img src="l42022_files/figure-html/unnamed-chunk-15-1.png" alt="Standard normal probability density function: qnorm(0.5)" width="100%" /> <p class="caption">Standard normal probability density function: qnorm(0.5)</p> </div> ] --- ## Normal distribution: `norm` .pull-left[ ![](norm.png) ] .pull-left[ ```r pnorm(3) ``` ``` [1] 0.9986501 ``` ```r pnorm(3, sd=1, mean=0) ``` ``` [1] 0.9986501 ``` ```r pnorm(3, sd=2, mean=1) ``` ``` [1] 0.8413447 ``` ] --- ### Binomial distribution ```r dbinom(2, size=10, prob=0.2) ``` ``` [1] 0.3019899 ``` ```r a <- dbinom(0:10, size=10, prob=0.2) a ``` ``` [1] 0.1073741824 0.2684354560 0.3019898880 0.2013265920 0.0880803840 [6] 0.0264241152 0.0055050240 0.0007864320 0.0000737280 0.0000040960 [11] 0.0000001024 ``` ```r cumsum(a) ``` ``` [1] 0.1073742 0.3758096 0.6777995 0.8791261 0.9672065 0.9936306 0.9991356 [8] 0.9999221 0.9999958 0.9999999 1.0000000 ``` --- ```r cumsum(a) ``` ``` [1] 0.1073742 0.3758096 0.6777995 0.8791261 0.9672065 0.9936306 0.9991356 [8] 0.9999221 0.9999958 0.9999999 1.0000000 ``` ```r pbinom(0:10, size=10, prob=0.2) ``` ``` [1] 0.1073742 0.3758096 0.6777995 0.8791261 0.9672065 0.9936306 0.9991356 [8] 0.9999221 0.9999958 0.9999999 1.0000000 ``` ```r qbinom(0.4, size=10, prob=0.2) ``` ``` [1] 2 ``` --- ### Standard Normal Distribution: rnorm .pull-left[ ```r set.seed(262020) random_numbers <- rnorm(5) random_numbers ``` ``` [1] 0.2007818 0.9587335 1.1836906 1.4951375 1.1810922 ``` ```r sort(random_numbers) ## sort the numbers then it is easy to map with the graph ``` ``` [1] 0.2007818 0.9587335 1.1810922 1.1836906 1.4951375 ``` ] .pull-right[ <img src="l42022_files/figure-html/unnamed-chunk-20-1.png" width="100%" /> ] --- class: inverse, center, middle # Other distributions in R --- .pull-left[ - **`beta`**: beta distribution - **`binom`**: binomial distribution - **`cauchy`**: Cauchy distribution - **`chisq`**: chi-squared distribution - **`exp`**: exponential distribution - **`f`**: F distribution - **`gamma`**: gamma distribution - **`geom`**: geometric distribution - **`hyper`**: hyper-geometric distribution ] .pull-right[ - **`lnorm`**: log-normal distribution - **`multinom`**: multinomial distribution - **`nbinom`**: negative binomial distribution - **`norm`**: normal distribution - **`pois`**: Poisson distribution - **`t`**: Student's t distribution - **`unif`**: uniform distribution - **`weibull`**: Weibull distribution ] --- class: inverse, center, middle π Getting help with R: **`?Distributions`** --- class: inverse, center, middle # Your turn --- **Q1** Suppose `\(Z \sim N(0,1)\)`. Calculate the following standard normal probabilities. - `\(P(Z \le 1.25)\)`, - `\(P(Z > 1.25)\)`, - `\(P(Z \leq -1.25)\)`, - `\(P(-.38 \leq Z \leq 1.25)\)`. **Q2** Find the following percentiles for the standard normal distribution. - 90th, - 95th, - 97.5th, --- **Q3** Determine the `\(Z_\alpha\)` for the following - `\(\alpha = 0.1\)` - `\(\alpha = 0.95\)` **Q4** Suppose `\(X \sim N(15, 9)\)`. Calculate the following probabilities - `\(P(X \leq 15)\)`, - `\(P(X < 15)\)`, - `\(P(X \geq 10)\)`.
02
:
00
--- **Q5** A particular mobile phone number is used to receive both voice messages and text messages. Suppose 20% of the messages involve text messages, and consider a sample of 15 messages. What is the probability that - At most 8 of the messages involve a text message? - Exactly 8 of the messages involve a text message.
02
:
00
--- **Q6** Generate 20 random values from a Poisson distribution with mean 10 and calculate the mean. Compare your answer with others.
02
:
00

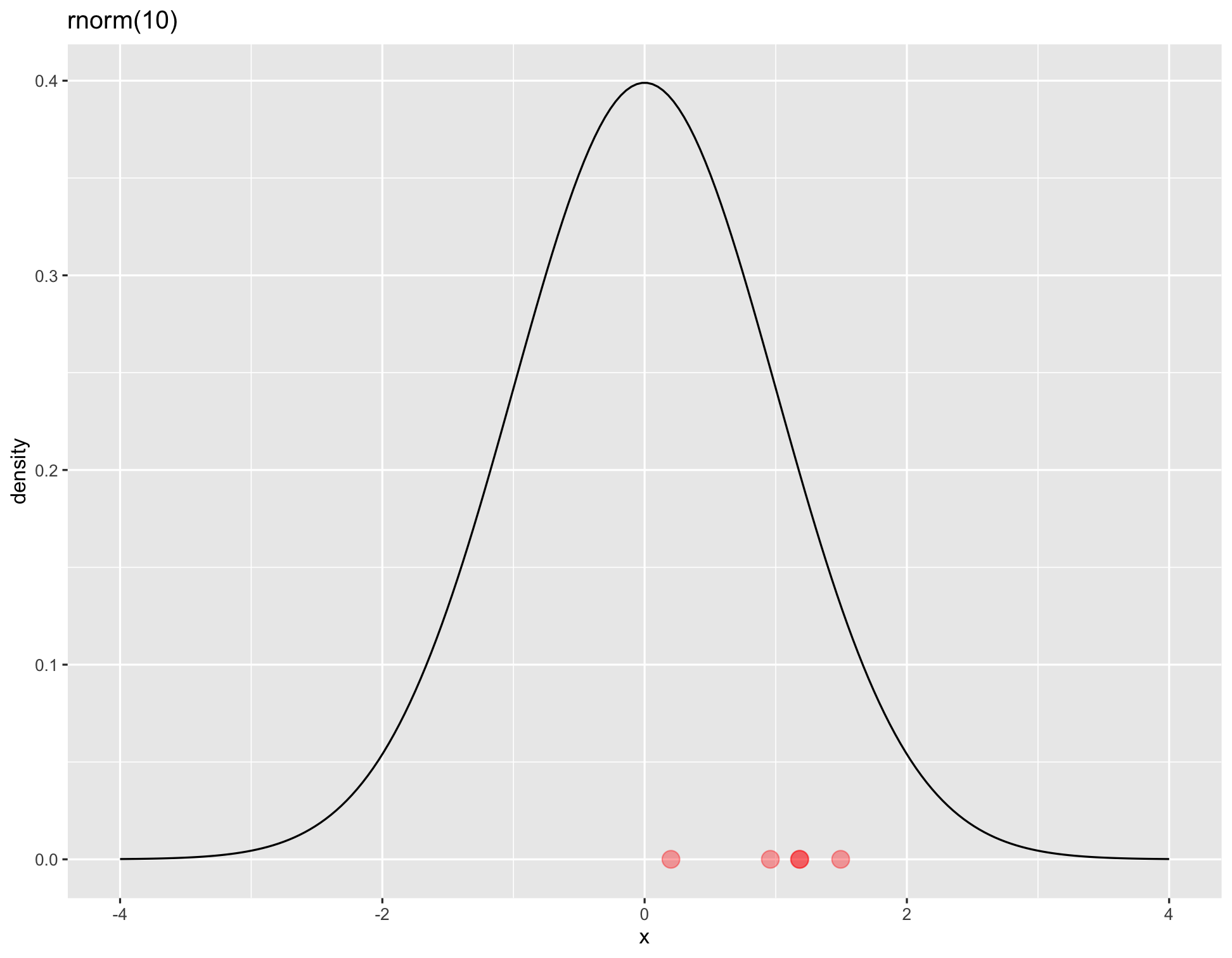

--- # Reproducibility of scientific results ```r rnorm(10) # first attempt ``` ``` [1] 1.6582609 -1.8912734 -2.8471112 -2.1617741 0.6401224 -0.4295948 [7] -0.3122580 -1.0267992 1.4231150 0.8661058 ``` ```r rnorm(10) # second attempt ``` ``` [1] -0.91879540 -0.06053766 -0.20263170 -0.26301690 0.97964620 -0.46034817 [7] 0.81826880 -0.60935778 1.71086661 0.49294451 ``` As you can see above you will get different results. --- # Reproducibility of scientific results (cont.) ```r set.seed(1) rnorm(10) # First attempt with set.seed ``` ``` [1] -0.6264538 0.1836433 -0.8356286 1.5952808 0.3295078 -0.8204684 [7] 0.4874291 0.7383247 0.5757814 -0.3053884 ``` ```r set.seed(1) rnorm(10) # Second attempt with set.seed ``` ``` [1] -0.6264538 0.1836433 -0.8356286 1.5952808 0.3295078 -0.8204684 [7] 0.4874291 0.7383247 0.5757814 -0.3053884 ``` --- ## R Apply family and its variants - **`apply()`** function ```r marks <- data.frame(maths=c(10, 20, 30), chemistry=c(100, NA, 60)); marks ``` ``` maths chemistry 1 10 100 2 20 NA 3 30 60 ``` ```r apply(marks, 1, mean) ``` ``` [1] 55 NA 45 ``` ```r apply(marks, 2, mean) ``` ``` maths chemistry 20 NA ``` -- ```r apply(marks, 1, mean, na.rm=TRUE) ``` ``` [1] 55 20 45 ``` --- class: duke-orange, center, middle # Your turn --- Calculate the row and column wise standard deviation of the following matrix ``` [,1] [,2] [,3] [,4] [1,] 1 6 11 16 [2,] 2 7 12 17 [3,] 3 8 13 18 [4,] 4 9 14 19 [5,] 5 10 15 20 ```
03
:
00
--- class: duke-green, center, middle # Your turn --- **Your turn** Find about the following variants of apply family functions in R **`lapply()`**, **`sapply()`**, **`vapply()`**, **`mapply()`**, **`rapply()`**, and **`tapply()`** functions. Resourses: You can follow the DataCamp tutorial [here](https://www.datacamp.com/community/tutorials/r-tutorial-apply-family?utm_source=adwords_ppc&utm_campaignid=1658343524&utm_adgroupid=63833882055&utm_device=c&utm_keyword=%2Bapply%20%2Br&utm_matchtype=b&utm_network=g&utm_adpostion=&utm_creative=319558765408&utm_targetid=aud-299261629574:kwd-309818754193&utm_loc_interest_ms=&utm_loc_physical_ms=1009919&gclid=EAIaIQobChMImfeQkOTq5wIVVQwrCh1BngrmEAAYASAAEgLEa_D_BwE). - You should clearly explain, - syntax for each function - function inputs - how each function works?/ The task of the function. - output of the function. - differences between the functions (apply vs lapply, apply vs sapply, etc.) - Provide your own example for each function. --- ## Data Visualization: qplot() ?qplot -- <img src="emoji.png" height="400"> --- # Installing R Packages ## Method 1 ![](inst.png) --- # Installing R Packages ## Method 2 ```r install.packages("ggplot2") ``` --- ## Load package ```r library(ggplot2) ``` Now search `?qplot` Note: You shouldn't have to re-install packages each time you open R. However, you do need to load the packages you want to use in that session via `library`. --- # `install.packages` vs `library` ![](loadpkg.jpeg) Image credit: [Professor Di Cook](http://dicook.org/) --- ## colmozzie dataset ```r library(colmozzie) data(colmozzie) ``` --- ## Data Visualization with R .pull-left[ ```r boxplot(mpg ~ cyl, data = mtcars, xlab = "Quantity of Cylinders", ylab = "Miles Per Gallon", main = "Boxplot Example", notch = TRUE, varwidth = TRUE, col = c("green","yellow","red"), names = c("High","Medium","Low") ) ``` <img src="l42022_files/figure-html/unnamed-chunk-33-1.png" width="100%" /> ] .pull-right[ ```r counts <- table(mtcars$gear) barplot(counts, main="Car Distribution", xlab="Number of Gears") ``` <img src="l42022_files/figure-html/unnamed-chunk-34-1.png" width="100%" /> ] --- Default R installation: graphics package ``` [1] "abline" "arrows" "assocplot" "axis" [5] "Axis" "axis.Date" "axis.POSIXct" "axTicks" [9] "barplot" "barplot.default" "box" "boxplot" [13] "boxplot.default" "boxplot.matrix" "bxp" "cdplot" [17] "clip" "close.screen" "co.intervals" "contour" [21] "contour.default" "coplot" "curve" "dotchart" [25] "erase.screen" "filled.contour" "fourfoldplot" "frame" [29] "grconvertX" "grconvertY" "grid" "hist" [33] "hist.default" "identify" "image" "image.default" [37] "layout" "layout.show" "lcm" "legend" [41] "lines" "lines.default" "locator" "matlines" [45] "matplot" "matpoints" "mosaicplot" "mtext" [49] "pairs" "pairs.default" "panel.smooth" "par" [53] "persp" "pie" "plot" "plot.default" [57] "plot.design" "plot.function" "plot.new" "plot.window" [61] "plot.xy" "points" "points.default" "polygon" [65] "polypath" "rasterImage" "rect" "rug" [69] "screen" "segments" "smoothScatter" "spineplot" [73] "split.screen" "stars" "stem" "strheight" [77] "stripchart" "strwidth" "sunflowerplot" "symbols" [81] "text" "text.default" "title" "xinch" [85] "xspline" "xyinch" "yinch" ``` --- ![](qplot.png) --- .pull-left[ <img src="l42022_files/figure-html/unnamed-chunk-36-1.png" width="100%" /> ] .pull-right[ <img src="l42022_files/figure-html/unnamed-chunk-37-1.png" width="100%" /> ] --- background-image: url('qplottheory.png') background-position: center background-size: contain --- ## colmozzie ```r head(colmozzie) ``` ``` # A tibble: 6 Γ 12 Cases Year Week TEM TMAX Tm SLP H PP VV V VM <int> <int> <int> <dbl> <dbl> <dbl> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> 1 44 2009 1 27.3 32.7 23.6 1010.7 68 0 13 11.1 20.6 2 39 2009 2 26.4 29.8 23.9 1010.7 78.7 0 18.3 5.83 9.2 3 57 2009 3 27.1 32.0 23.5 1012.58 67 0 20 6.12 10.5 4 53 2009 4 26.8 31 23.4 1009.9 68 0 20 7.15 11.1 5 29 2009 5 26.8 30.1 23.6 1010.1 78 17.2 19.0 3.2 6.82 6 45 2009 6 26.8 30.6 23 1012.05 72.5 0 20 5.55 10.3 ``` --- ## mozzie ```r devtools::install_github("thiyangt/mozzie") ``` ```r library(mozzie) data(mozzie) ``` --- ## Data Visualization with `qplot` ## plot vs qplot .pull-left[ ```r plot(mozzie$Colombo, mozzie$Gampaha) ``` <img src="l42022_files/figure-html/unnamed-chunk-40-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-41-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-42-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, colour=Year) ``` <img src="l42022_files/figure-html/unnamed-chunk-43-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-44-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, size=Year) ``` <img src="l42022_files/figure-html/unnamed-chunk-45-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-46-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, size=Year, alpha=0.5) ``` <img src="l42022_files/figure-html/unnamed-chunk-47-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-48-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, geom="point") ``` <img src="l42022_files/figure-html/unnamed-chunk-49-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(ID, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-50-1.png" width="100%" /> ] .pull-right[ ```r qplot(ID, Gampaha, data=mozzie, geom="line") ``` <img src="l42022_files/figure-html/unnamed-chunk-51-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(ID, Gampaha, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-52-1.png" width="100%" /> ] .pull-right[ ```r qplot(ID, Gampaha, data=mozzie, geom="path") ``` <img src="l42022_files/figure-html/unnamed-chunk-53-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie, geom="line") ``` <img src="l42022_files/figure-html/unnamed-chunk-54-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, geom="path") ``` <img src="l42022_files/figure-html/unnamed-chunk-55-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, Gampaha, data=mozzie, geom=c("line", "point")) ``` <img src="l42022_files/figure-html/unnamed-chunk-56-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, Gampaha, data=mozzie, geom=c("path", "point")) ``` <img src="l42022_files/figure-html/unnamed-chunk-57-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r boxplot(Colombo~Year, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-58-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie, geom="boxplot") ``` <img src="l42022_files/figure-html/unnamed-chunk-59-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(factor(Year), Colombo, data=mozzie, geom="boxplot") ``` <img src="l42022_files/figure-html/unnamed-chunk-60-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie) # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-61-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(factor(Year), Colombo, data=mozzie, geom="point") ``` <img src="l42022_files/figure-html/unnamed-chunk-62-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie, geom="jitter") # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-63-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(factor(Year), Colombo, data=mozzie, geom="jitter") ``` <img src="l42022_files/figure-html/unnamed-chunk-64-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie, geom=c("jitter", "boxplot")) # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-65-1.png" width="100%" /> ] --- .pull-left[ <img src="l42022_files/figure-html/unnamed-chunk-66-1.png" width="100%" /> <img src="l42022_files/figure-html/unnamed-chunk-67-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie, geom=c("jitter", "boxplot")) # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-68-1.png" width="100%" /> ] --- .pull-left[ ```r qplot(factor(Year), Colombo, data=mozzie, geom=c("jitter", "boxplot")) # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-69-1.png" width="100%" /> ] .pull-right[ ```r qplot(factor(Year), Colombo, data=mozzie, geom=c("jitter", "boxplot"), outlier.shape = NA) # geom="point"-default ``` <img src="l42022_files/figure-html/unnamed-chunk-70-1.png" width="100%" /> ] --- ## Data Visualization with `qplot` .pull-left[ ```r qplot(Colombo, data=mozzie) ``` <img src="l42022_files/figure-html/unnamed-chunk-71-1.png" width="100%" /> ] .pull-right[ ```r qplot(Colombo, data=mozzie, geom="density") ``` <img src="l42022_files/figure-html/unnamed-chunk-72-1.png" width="100%" /> ] --- class: inverse, center, middle # Your turn --- Explore `iris` dataset with suitable graphics. ```r head(iris) ``` ``` Sepal.Length Sepal.Width Petal.Length Petal.Width Species 1 5.1 3.5 1.4 0.2 setosa 2 4.9 3.0 1.4 0.2 setosa 3 4.7 3.2 1.3 0.2 setosa 4 4.6 3.1 1.5 0.2 setosa 5 5.0 3.6 1.4 0.2 setosa 6 5.4 3.9 1.7 0.4 setosa ``` <img src="iris_flower_dataset.png" width="800"> class: center, middle ## Thank you! Slides available at: hellor.netlify.app All rights reserved by [Thiyanga S. Talagala](https://thiyanga.netlify.app/)
